DS85S SLANT – DRILLING RIG 85 MTON

Wei | DS85S SLANT – DRILLING RIG 85 MTON

Wei | Well Equipment International - Piacenza, Italy | DS85S Slant – DRILLING RIG 85 MTON

Hydraulic Drilling Rig, for geothermal, water and gas-wells till 2.700 mt.
Semi-trailer mounted, completed by Top Drive, Coring Head, Hydraulic Power Tong, Rotating Jib Crane, Hydraulic Elevators.
Slant Rig till 45°.

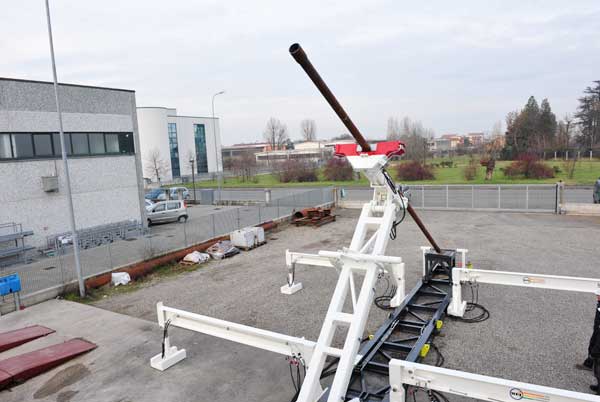

Separate Pipe handler and pipe rack, for slant application also.
Mast sliding and lattice type, inspired by WEI experience in the Oil and Gas Sector.
Custom made as all WEI Rigs.

SLANT DRILLING RIG 85 MTON Technical Data


Capacity
DP Size Depth
5 ″ 1.700 m - 5.600 ft
4 1/2″ 2.150 m - 7.050 ft
3 1/2″ 2.700 m - 8.850 ft

Mast
Top Drive max stroke Capacity
16 m - 52.5 ft 90.000 daN - 202.300 lbs
Max pull up 90.000 daN - 202.300 lbs
Max pull down 20.000 daN - 44.960 lbs
Power swiwel Max Torque 2.800 daNm - 20.650 ftlb, 0 - 200 RPM

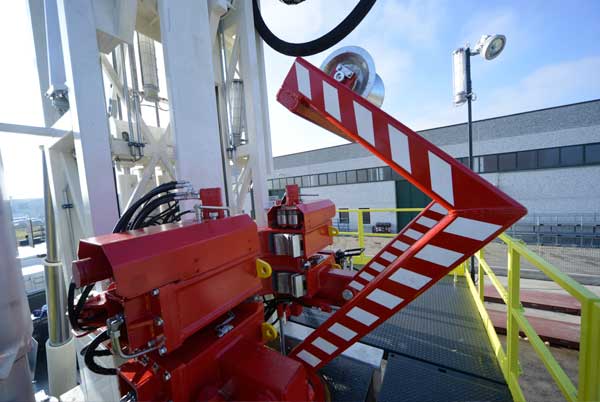

Hyd.Power Tong
Max Break Out Torque 8.000 daNm - 59.000 ftlbs
Max opening 520 mm - 20 1/2"
Max stroke 700 mm - 27 1/2"

Coring Head
Max Torque 450 daNm - 3.239 ftlbs
Max rpm 1.000 rpm
Jib crane 4.000 daN - 8.990 lbs
Slant from 0° to 45°
Rig power unit Diesel 540 HP
Duplex mud pump To be required
